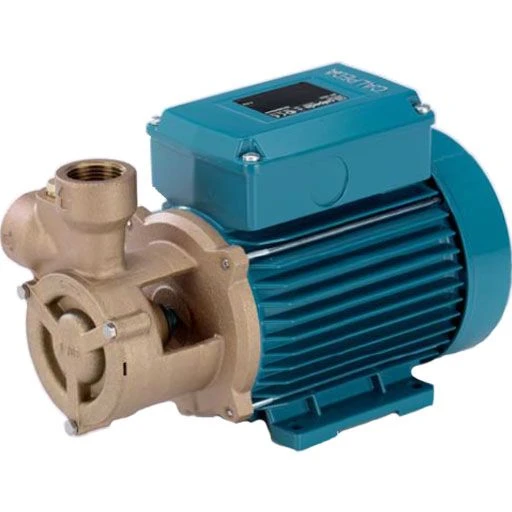

Calpeda B-TPM 78/A Bronze Peripheral Booster Pump 240V

Calpeda B-TPM 78/A Bronze Peripheral Booster Pump 240V - Image 2

Calpeda B-TPM 78/A Bronze Peripheral Booster Pump 240V - Image 3

Calpeda B-TPM 78/A Bronze Peripheral Booster Pump 240V

Original price was: £379.00.Current price is: £95.99.

SKU: YW5JA 841 Categories: Calpeda B-T(M)/B-CT(M) Peripheral Booster Pumps, Peripheral Booster Pumps

Peace of Mind with Every Purchase
Easy, Fast Returns Guarantee
Buy with confidence, backed by quality.
Shop with Zero Worries

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

B-T/B-TP: version with pump casing and lantern bracket in bronze.

Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.

Operating conditions:

Liquid temperature -10°C to +90°C
Ambient temperature up to 40°C
Total suction lift up to 7m
1/2″ Suction and Discharge Ports (screwed connection)
Suitable for continuous duty

SKU	B-TPM78-A
Manufacturer	Calpeda
Manufacturers Warranty	1 Year
Weight	8.8 Kg

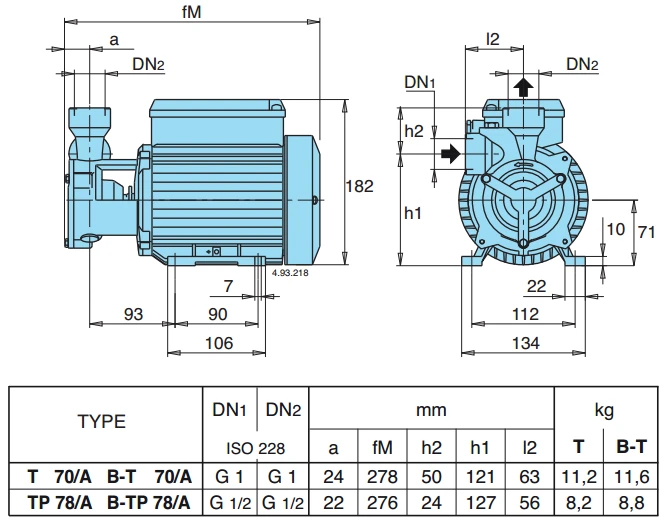

Dimensions	182mm High x 134mm Wide x 278mm Deep
Motor Size (kW/W)	0.37 kW
Voltage	240V 1Ph 50Hz
Max Flow	1 m3/hr
Max Head	75m
Material	Bronze
