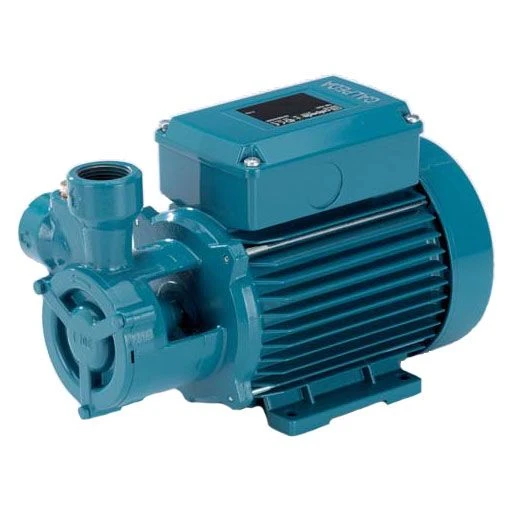

Calpeda TPM 78/A Peripheral Booster Pump 240V

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

B-T/B-TP: version with pump casing and lantern bracket in bronze.



Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.



Operating conditions:

• Liquid temperature -10°C to +90°C
• Ambient temperature up to 40°C
• Total suction lift up to 7m
• 1/2″ Suction and Discharge Ports (screwed connection)
• Suitable for continuous duty
