DAB FEKAFOS 2200 MAXI – DN50 + CV50 Draining Tank With Valve Chamber

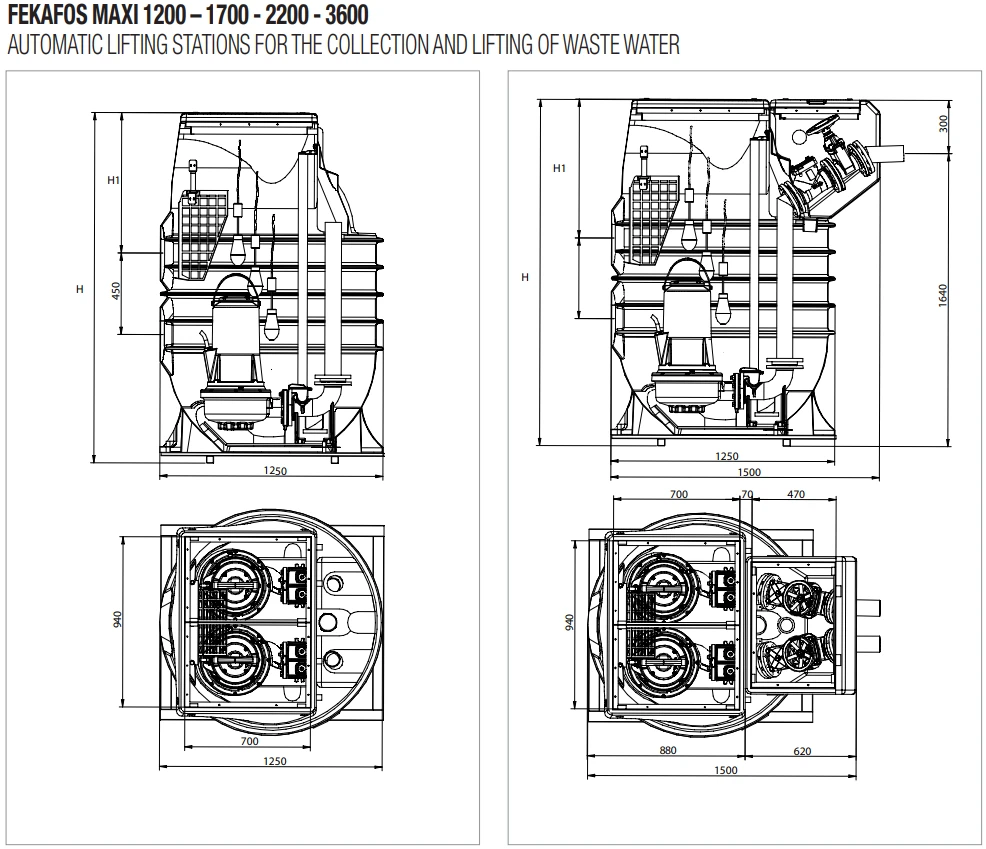

Fekafos Maxi Tank with valve chamber.

APPLICATIONS
Automatic collection and lifting station suitable for clear and rainwater or civil and industrial waste. Composed of a cylindrical polyethylene monoblock
with a suitably shaped bottom to house the pumps and to avoid stagnation. The upper inlet is equipped with lids with locking clasps and anti-odour seals.
The station is set up for the use of two single-phase non-automatic or three-phase pumps with a discharge diameter from DN50 to DN80.

CONSTRUCTION CHARACTERISTICS
CAPACITY: 1200 / 1700 / 2200 / 3600 L
MATERIALS: High density polyethylene

CONNECTIONS:
• DN DN125 / DN160 inlets
• DN 50 ventilation
• 2xDN50 / 2xDN65 / 2xDN80 outlets

COMPONENTS INCLUDED:
• 2 coupling units in grey cast iron for insertion and extraction of pumps
• stainless steel guide tubes
• PVC “T” inlet fitting
• 2 polyethylene outlet pipes
• 3 Bulb floats
• Lids with locking clasps and polyethylene anti-odour seals

ACCESSORIES ON REQUEST:
• Valve inspection section complete with two gate valves and grey cast iron check valves
• Anti-intrusion grating.
• Filter basket
• Drive-over frame D400 1200×1200 (To be fixed on site in the concrete structure surrounding the tank)
