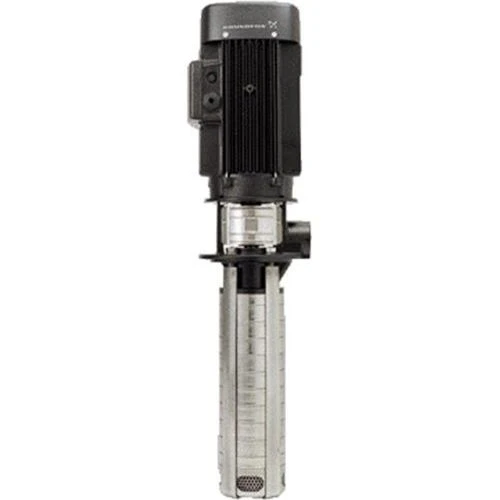

Grundfos MTR 20 8/8 A W A HUUV 11kW Stainless Steel Vertical Immersible Pump 415v

Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics:

Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling.

A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

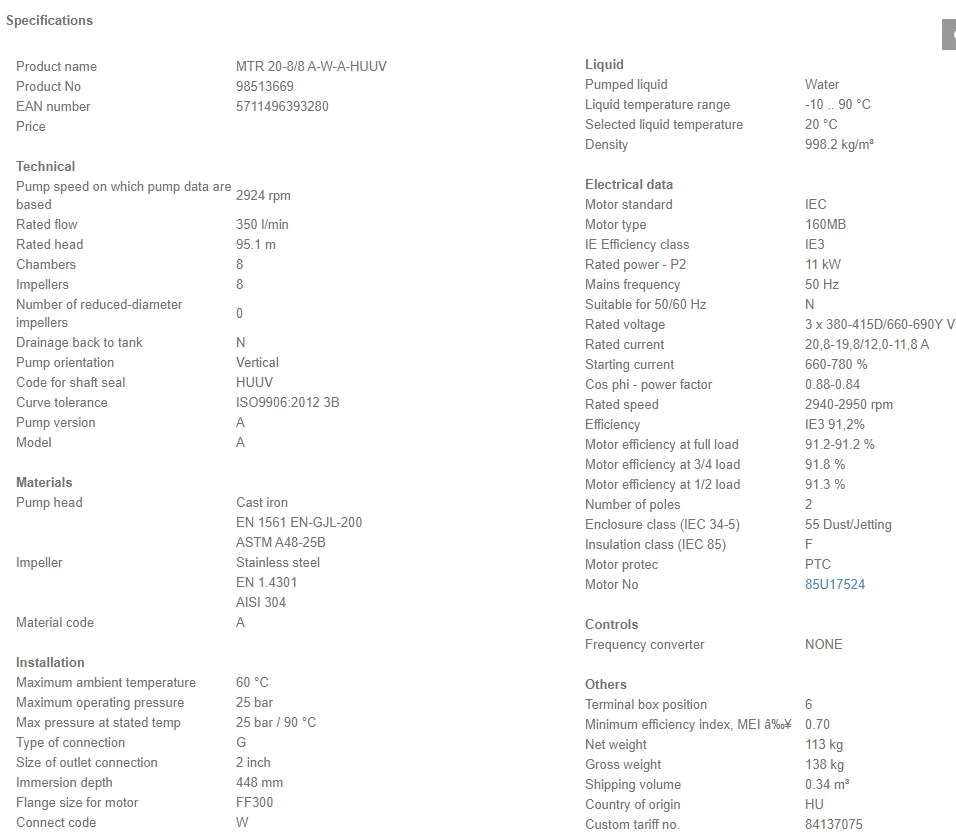

SKU	98513669
GTIN	5711496393280
Weight	138.0 Kg

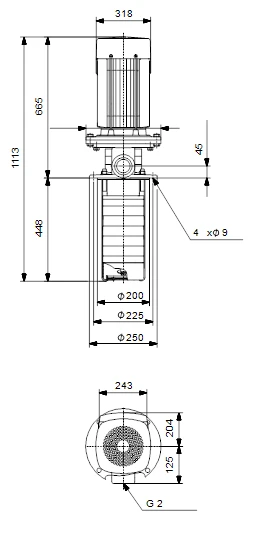

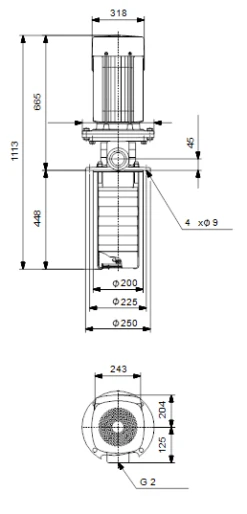

Dimensions	1113mm (h) x 250mm (w) x 329mm (d)
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
Material	Cast Iron
Impeller Material	Stainless Steel
Voltage	415V 3Ph 50Hz

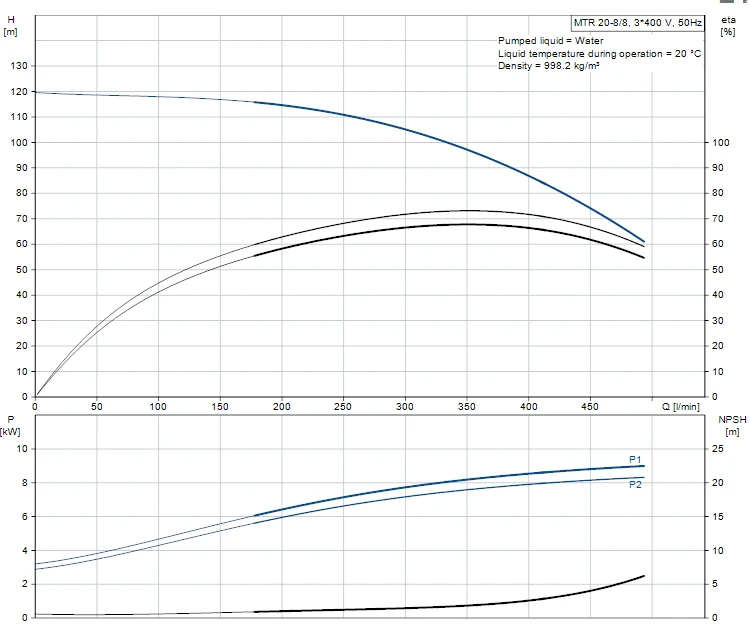

Max Flow	494l/min
Max Head	119m
Full Load Current (FLC)	12,0-11,8 A
Motor Size (kW/W)	11 kW
Immersion Depth	448mm
