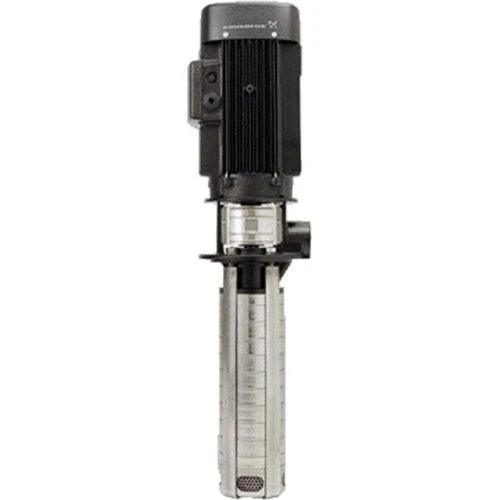

Grundfos MTR 8 24/24 A W A HUUV 7.5kW Stainless Steel Vertical Immersible Pump 415v

Grundfos MTR 8 24/24 A W A HUUV 7.5kW Stainless Steel Vertical Immersible Pump 415v - Image 2

Grundfos MTR 8 24/24 A W A HUUV 7.5kW Stainless Steel Vertical Immersible Pump 415v - Image 3

Grundfos MTR 8 24/24 A W A HUUV 7.5kW Stainless Steel Vertical Immersible Pump 415v - Image 4

Grundfos MTR 8 24/24 A W A HUUV 7.5kW Stainless Steel Vertical Immersible Pump 415v

Original price was: £362.00.Current price is: £97.99.

SKU: YW5JA 15023 Categories: Grundfos MTR(E) Stainless Steel Immersible Pumps 415v, Immersible Pumps

Peace of Mind with Every Purchase
Easy, Fast Returns Guarantee
Buy with confidence, backed by quality.
Shop with Zero Worries

Grundfos MTR 8 24/24 A W A HUUV 7.5kW Stainless Steel Vertical Immersible Pump 415v

Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics:

Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling.

A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

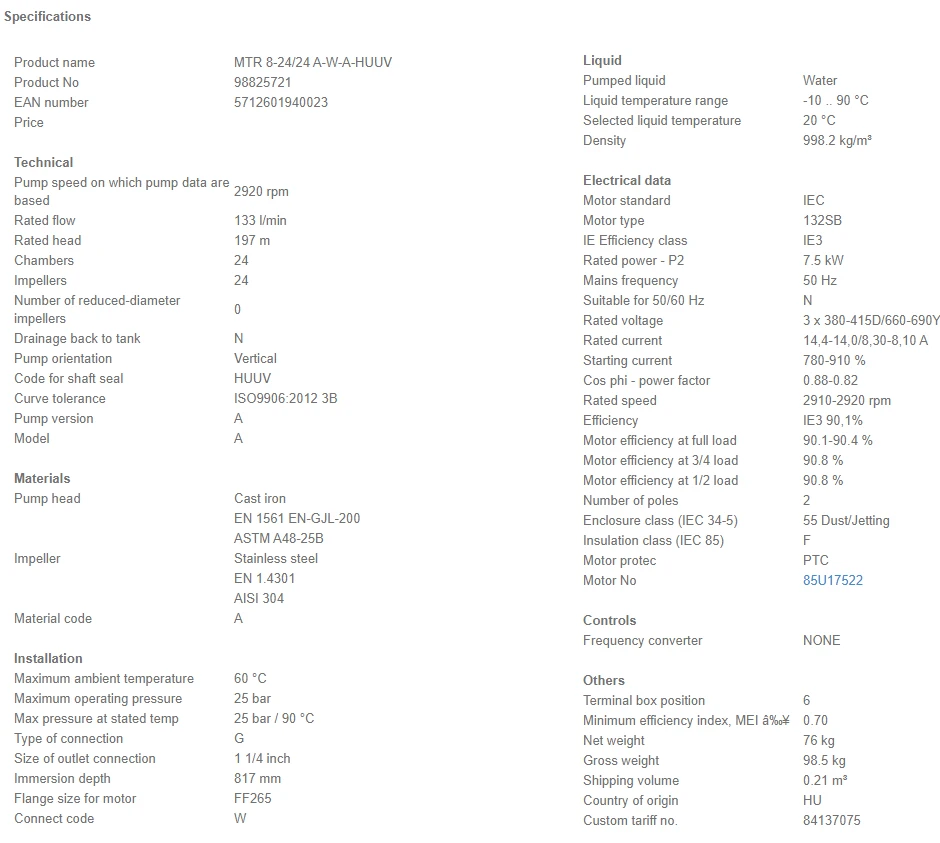

SKU	98825721
GTIN	5712601940023
Weight	98.5 Kg

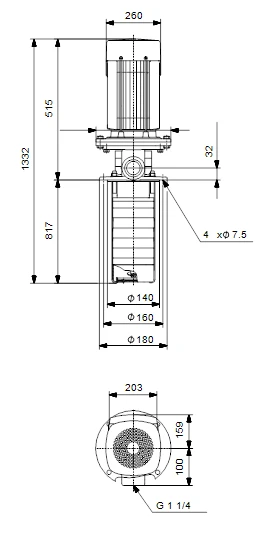

Dimensions	1332mm (h) x 180mm (w) x 259mm (d)
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
Material	Cast Iron
Impeller Material	Stainless Steel
Voltage	415V 3Ph 50Hz
Max Flow	202.2l/min
Max Head	240m
Full Load Current (FLC)	8,30-8,10 A
Motor Size (kW/W)	7.5 kW
Immersion Depth	817mm
