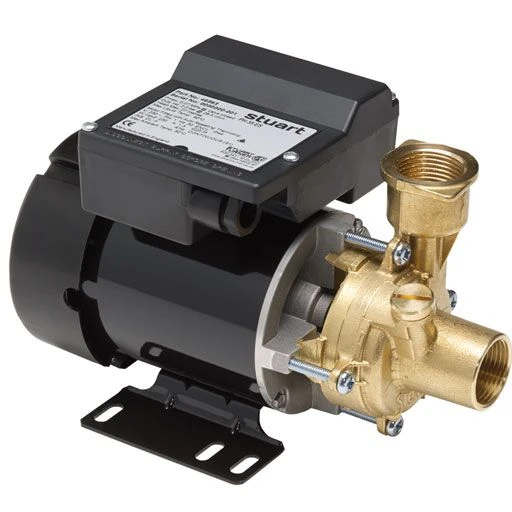

Stuart Turner PH 35 ES Brass Peripheral Booster Pump (Brass Impeller - (EPDM/PTFE/Al.Ox) 240V

Stuart Turner PH 35 ES Brass Peripheral Booster Pump (Brass Impeller - (EPDM/PTFE/Al.Ox) 240V - Image 2

Stuart Turner PH 35 ES Brass Peripheral Booster Pump (Brass Impeller - (EPDM/PTFE/Al.Ox) 240V - Image 3

Stuart Turner PH 35 ES Brass Peripheral Booster Pump (Brass Impeller – (EPDM/PTFE/Al.Ox) 240V

Original price was: £171.00.Current price is: £99.99.

SKU: YW5JA 6008 Categories: Peripheral Booster Pumps, Stuart Turner PH TS (FL/B/S) / ES (FL/B) Series

Peace of Mind with Every Purchase
Easy, Fast Returns Guarantee
Buy with confidence, backed by quality.
Shop with Zero Worries

The PH ES range of peripheral pumps with horizontal suction and vertical delivery are designed for continuous operation at 2.5 l/min and above, and offer a number of seal and motor options to meet your requirements. A vertical suction range (ES range) is also available.

The range of PH ES peripheral pumps is designed to pump clean, fresh water. Other clean, non aggressive, non explosive liquids with similar characteristics to water may be pumped. The PH ES range can be used for pressure boosting, fluid transfer and distribution. They are suitable for flooded suction applications. Alternatively a maximum suction lift of 4.6 m is permitted when using a Stuart footvalve/strainer.

Seal arrangements for PH 35 ES/ 45 ES are:

EPDM / PTFE / Al. Oxide
Viton/Carbon/Silicone

This pump has EPDM / PTFE / Al. Oxide seals and G 1″ female screwed inlet/outlet connections.

The Stuart Turner commercial range of pumps have a 1 year warranty.

SKU	46563
Manufacturer	Stuart Turner
Manufacturers Warranty	1 Year
GTIN	5050400465638
Weight	5.0 Kg

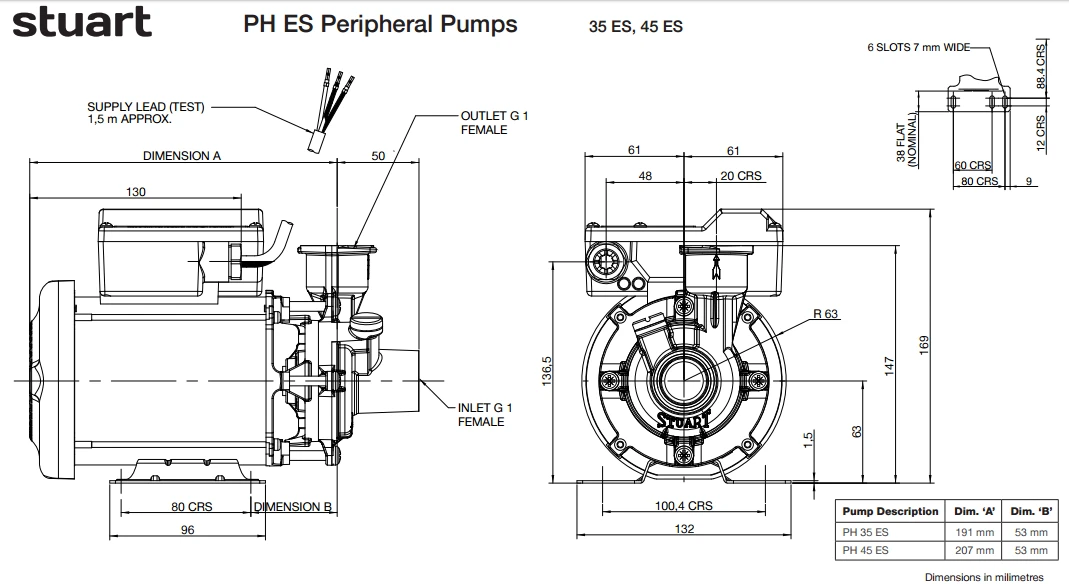

Dimensions	166mm High x 130mm Wide x 241mm Deep
Motor Size (kW/W)	0.45kW
Full Load Current (FLC)	1.95A
Voltage	240V 1Ph 50Hz

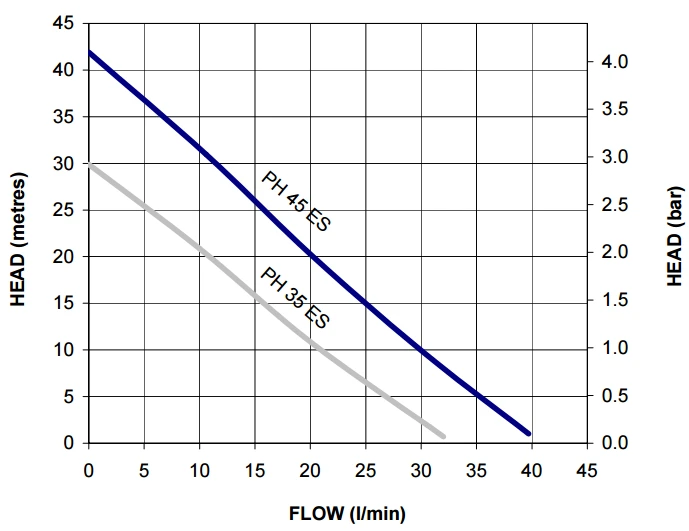

Max Flow	32 l/min
Max Head	30m
Max Pressure	600 kPa (6 bar)
Material	Brass
Seal Type	EPDM/PTFE/Al.Ox
Impeller Material	Brass
