Stuart Turner PH 35 TS Brass Peripheral Booster Pump C/w Vent Plug (Brass Impeller - Vit/Car/Sil Seals) 240V

Stuart Turner PH 35 TS Brass Peripheral Booster Pump C/w Vent Plug (Brass Impeller - Vit/Car/Sil Seals) 240V - Image 2

Stuart Turner PH 35 TS Brass Peripheral Booster Pump C/w Vent Plug (Brass Impeller - Vit/Car/Sil Seals) 240V - Image 3

Stuart Turner PH 35 TS Brass Peripheral Booster Pump C/w Vent Plug (Brass Impeller – Vit/Car/Sil Seals) 240V

Original price was: £237.00.Current price is: £98.99.

SKU: YW5JA 6004 Categories: Peripheral Booster Pumps, Stuart Turner PH TS (FL/B/S) / ES (FL/B) Series

Peace of Mind with Every Purchase
Easy, Fast Returns Guarantee
Buy with confidence, backed by quality.
Shop with Zero Worries

The PH TS range of peripheral pumps with vertical suction and delivery are designed for continuous operation at 2.5 l/min and above and offer a number of seal and motor options to meet your requirements. A horizontal suction range (ES range) is also available.

The PH TS range is particularly suitable where space is at a premium to pump clean, fresh water. Other clean non aggressive, non explosive liquids with similar characteristics to water may be pumped. Please contact our Sales office for such applications.

Seal arrangements for the PH 35 and 45 TS are:

EPDM/PTFE/ Al. Oxide
Viton/Carbon/Silicone

This pump has Viton/Carbon/Silicone seals and G 3/4″ female screwed inlet/outlet connections.

The Stuart Turner commercial range of pumps have a 1 year warranty.

SKU	46445
Manufacturer	Stuart Turner
Manufacturers Warranty	2 Years
GTIN	5050400464457
Weight	4.8 Kg

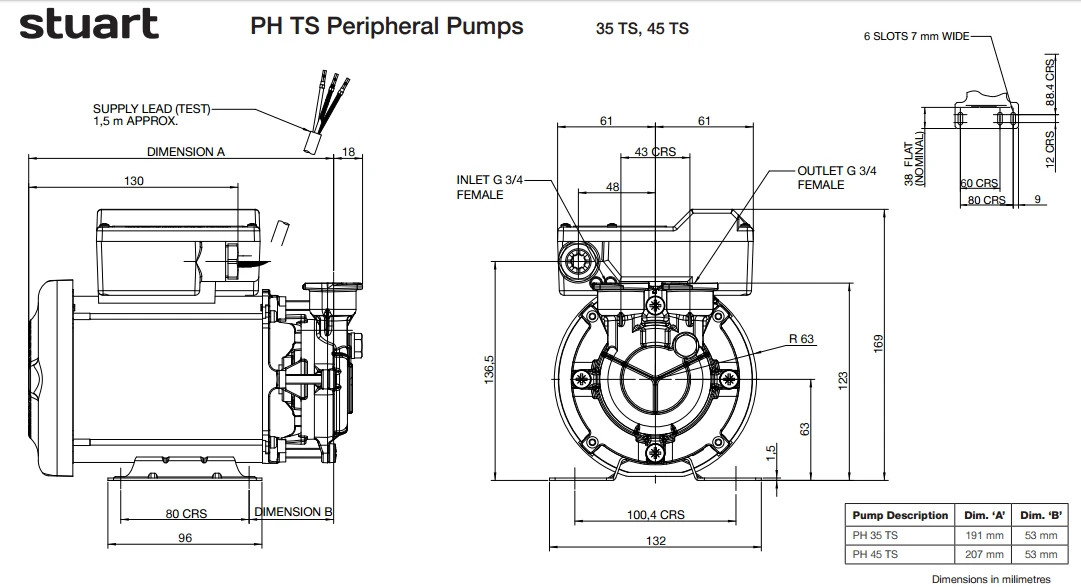

Dimensions	166mm High x 130mm Wide x 209mm Deep
Motor Size (kW/W)	0.41kW
Full Load Current (FLC)	1.8A
Voltage	240V 1Ph 50Hz

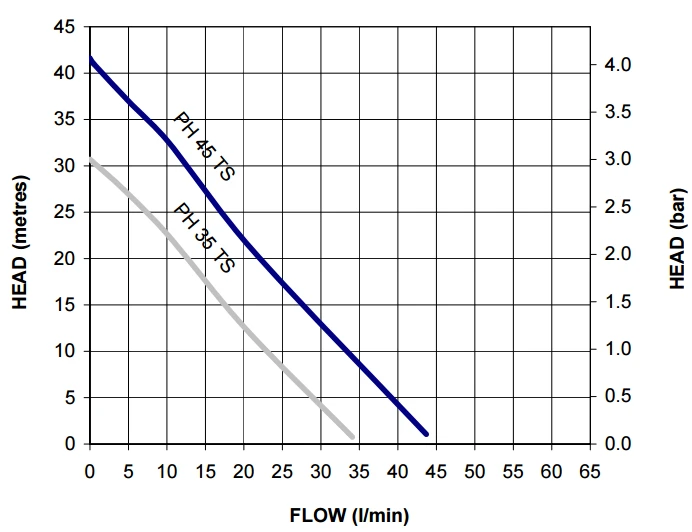

Max Flow	34 l/min
Max Head	30m
Max Pressure	600 kPa (6 bar)
Material	Brass
Seal Type	Vit/Car/Sil
Impeller Material	Brass
