Stuart Turner PH 45 ES Brass Peripheral Booster Pump (Brass Impeller - Vit/Car/Sil Seals) 240V

Stuart Turner PH 45 ES Brass Peripheral Booster Pump (Brass Impeller - Vit/Car/Sil Seals) 240V - Image 2

Stuart Turner PH 45 ES Brass Peripheral Booster Pump (Brass Impeller - Vit/Car/Sil Seals) 240V - Image 3

Stuart Turner PH 45 ES Brass Peripheral Booster Pump (Brass Impeller – Vit/Car/Sil Seals) 240V

Original price was: £259.00.Current price is: £96.99.

SKU: YW5JA 6017 Categories: Peripheral Booster Pumps, Stuart Turner PH TS (FL/B/S) / ES (FL/B) Series

Peace of Mind with Every Purchase
Easy, Fast Returns Guarantee
Buy with confidence, backed by quality.
Shop with Zero Worries

The PH ES range of peripheral pumps with horizontal suction and vertical delivery are designed for continuous operation at 2.5 l/min and above, and offer a number of seal and motor options to meet your requirements. A vertical suction range (ES range) is also available.

The range of PH ES peripheral pumps is designed to pump clean, fresh water. Other clean, non aggressive, non explosive liquids with similar characteristics to water may be pumped. The PH ES range can be used for pressure boosting, fluid transfer and distribution. They are suitable for flooded suction applications. Alternatively a maximum suction lift of 4.6 m is permitted when using a Stuart footvalve/strainer.

Seal arrangements for PH 35 ES/ 45 ES are:

EPDM/PTFE/Al. Oxide
Viton/Carbon/Silicone

This pump has Viton/Carbon/Silicone seals and G 1″ female screwed inlet/outlet connections.

The Stuart Turner commercial range of pumps have a 1 year warranty.

SKU	46454
Manufacturer	Stuart Turner
Manufacturers Warranty	2 Years
GTIN	5050400464549
Weight	6.5 Kg

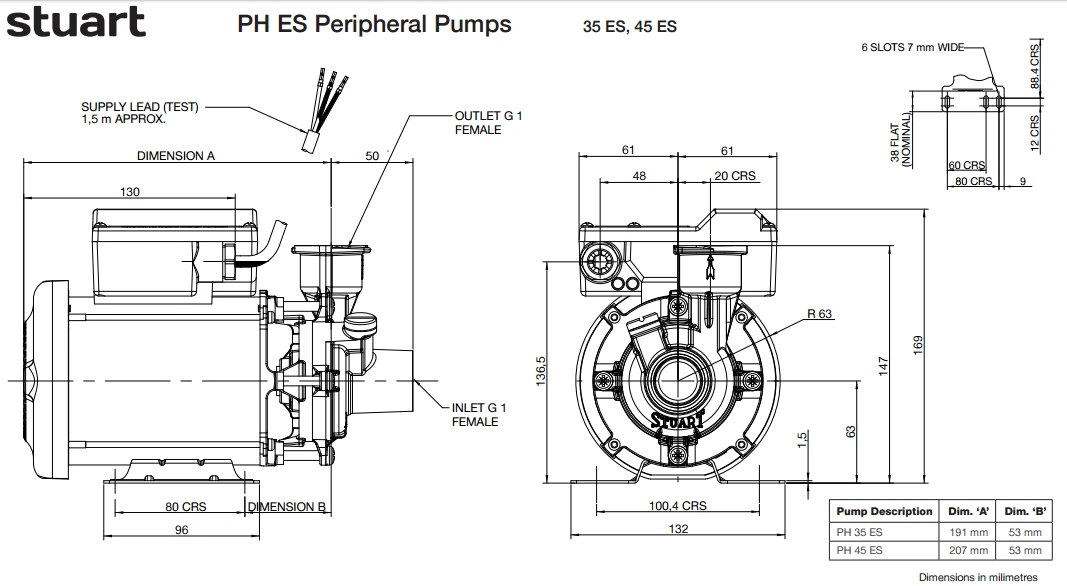

Dimensions	166mm High x 130mm Wide x 220mm Deep
Motor Size (kW/W)	0.66kW
Full Load Current (FLC)	2.9A
Voltage	240V 1Ph 50Hz

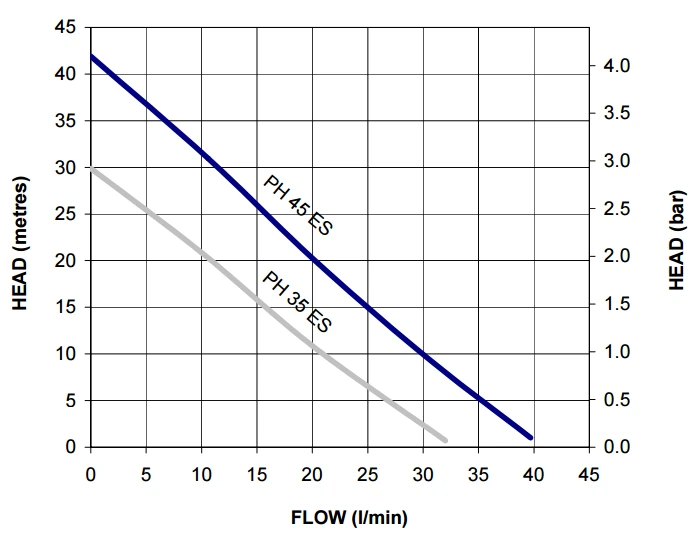

Max Flow	40 l/min
Max Head	42m
Max Pressure	600 kPa (6 bar)
Material	Brass
Seal Type	Vit/Car/Sil
Impeller Material	Brass
