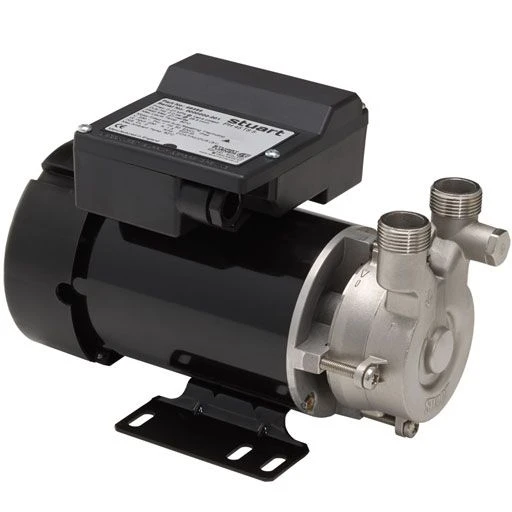

Stuart Turner PH 45 TS S Stainless Steel Peripheral Booster Pump (SS Impeller - EPDM/PTFE/Al.Oxide Seals) 240V

Stuart Turner PH 45 TS S Stainless Steel Peripheral Booster Pump (SS Impeller - EPDM/PTFE/Al.Oxide Seals) 240V - Image 2

Stuart Turner PH 45 TS S Stainless Steel Peripheral Booster Pump (SS Impeller - EPDM/PTFE/Al.Oxide Seals) 240V - Image 3

Stuart Turner PH 45 TS S Stainless Steel Peripheral Booster Pump (SS Impeller – EPDM/PTFE/Al.Oxide Seals) 240V

Original price was: £352.00.Current price is: £96.99.

SKU: YW5JA 6014 Categories: Peripheral Booster Pumps, Stuart Turner PH TS (FL/B/S) / ES (FL/B) Series

Peace of Mind with Every Purchase
Easy, Fast Returns Guarantee
Buy with confidence, backed by quality.
Shop with Zero Worries

The PH 45 TS S pump body assembly and impeller are manufactured using cast 316 stainless steel with all other exposed components being made of stainless steel or other non-ferrous materials.

Designed for continuous use, the stainless steel peripheral range is ideal for handling non-abrasive liquids and is developed specifically for beer, lager or cider dispense. Also used for pumping demineralised water.

Seal arrangements for the PH 45 TS S pumps are:

EPDM/PTFE/Al. Oxide
Viton/Carbon/Silicone

Features:

Stainless steel components
Seal options
Performance adjustment possible

This pump has EPDM / PTFE / Al. Oxide seals, G 3/4″ male inlet/outlet connections.

The Stuart Turner commercial range of pumps have a 1 year warranty.

SKU	46628
Manufacturer	Stuart Turner
Manufacturers Warranty	1 Year
GTIN	5050400466284
Weight	6.5 Kg

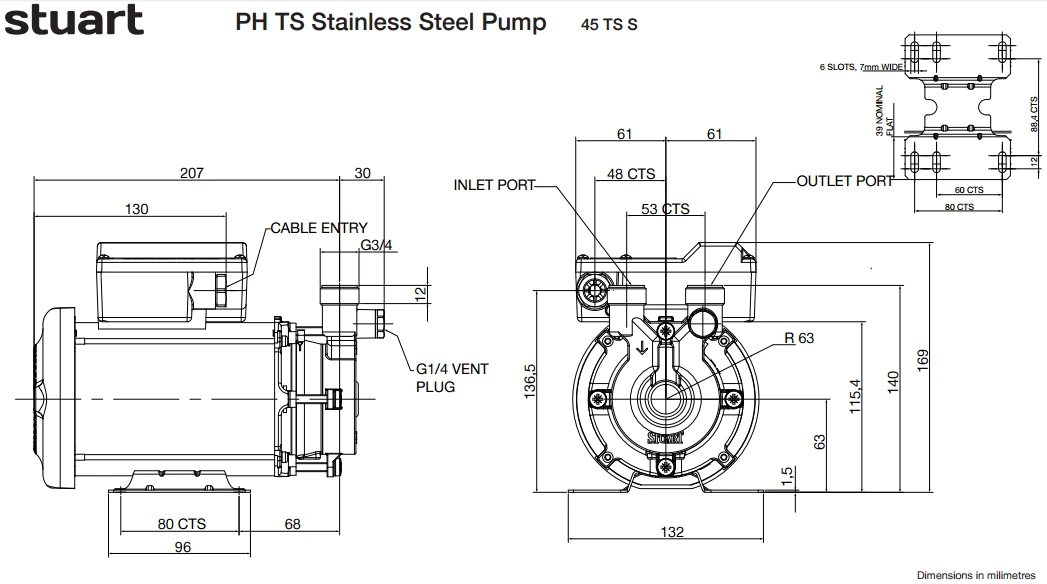

Dimensions	166mm High x 130mm Wide x 249mm Deep
Motor Size (kW/W)	0.52kW
Full Load Current (FLC)	2.4A
Voltage	240V 1Ph 50Hz

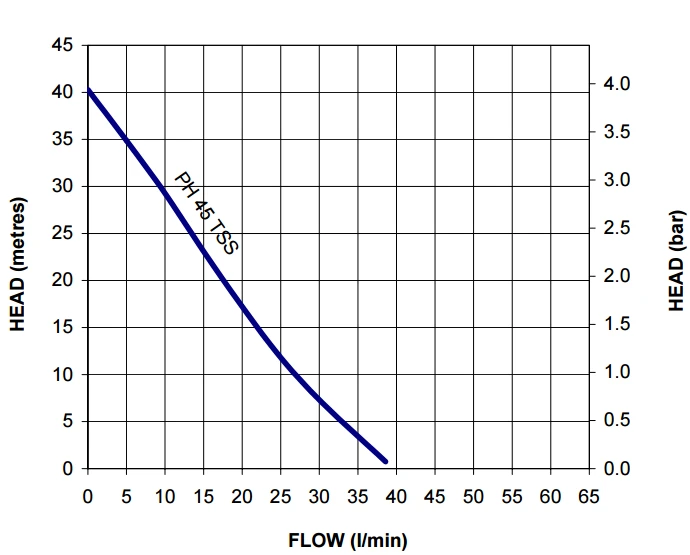

Max Flow	40 l/min
Max Head	40m
Max Pressure	600 kPa (6 bar)
Material	Stainless Steel
Seal Type	EPDM/PTFE/Al.Oxide
Impeller Material	Stainless Steel
